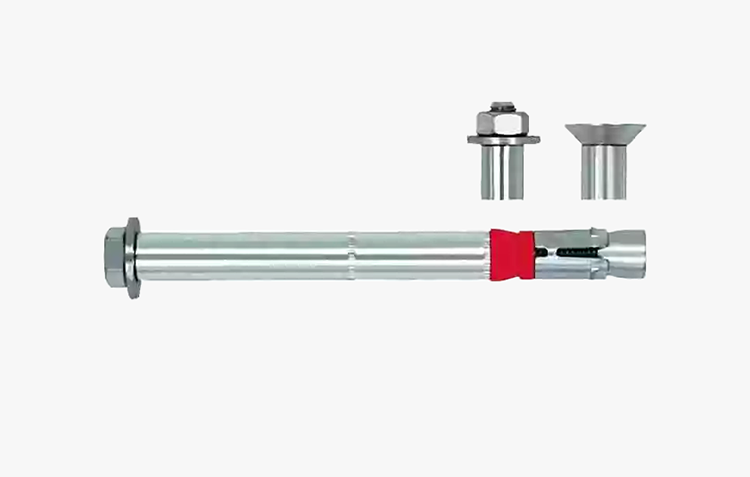

Highload mechanical anchor SZF

Suitable for medium to high load anchoring in cracked and uncracked concrete, such as trusses, railings, machines, scaffolding, and consoles, even in wet rooms and outdoors.
Detail

Advantages:

  1. High tension and shear loads

  2. Variable anchoring depths for even higher shear loads

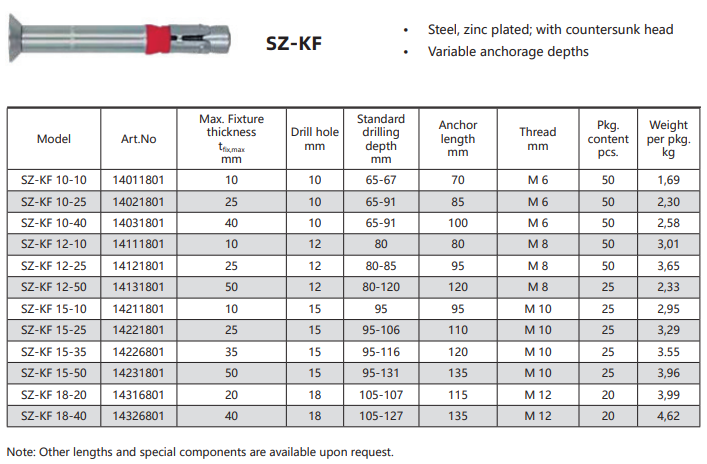

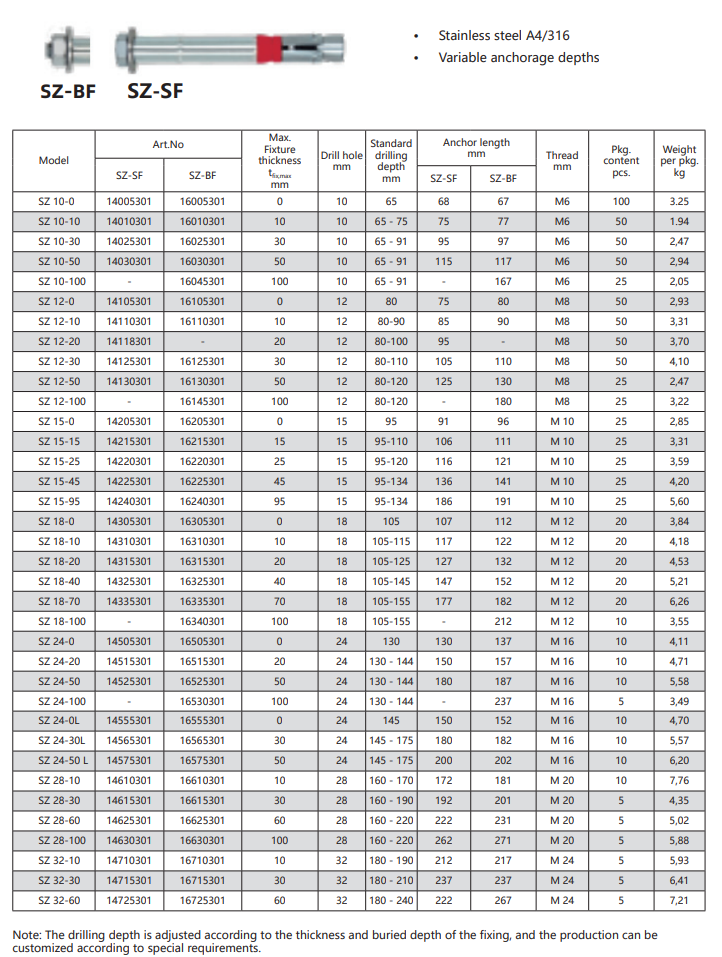

  3. Screw/washer (SZ-BF) model and flat head (SZ-KF) model forfinished surfaces

  4. Can be dismantled with a flush surface result (only the cone and expansion sleeve remain in the drill-hole)

  5. Smaller spacings and edge distances

  6. Fire protection approved

  7. Approved to use under seismic action according to the perfor mance category C1+C2 (M8-M24)



Specification:
