Cast-in channels FPH +T- Bolts

Detail

Advantages：

  1. Using fully hot-rolled steel, made of Q355B, Q355D, or A4 stainless steel

  2. Easy, convenient and fast installation, adjustable displacement after installation, capable of bearing external loads in different directions

  3. The surface is treated with hotdip galvanizing, and through up to twenty processes of production quality control, the channel is not easily twisted or deformed

  4. Higher design values for tensile and shear forces

  5. Good corrosion resistance and durability

  6. Strong earthquake resistance and high fire rating

  7. Original patented technology for in-situ replacement of channels, ensuring fast maintenance and cost savings

  8. Straight tooth type 64/44 is a high-strength channel for welded I-beam anchor legs, made of Q355D or above or A4 stainless steel

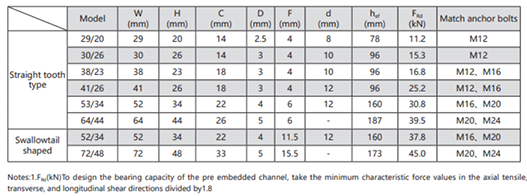

Specification:

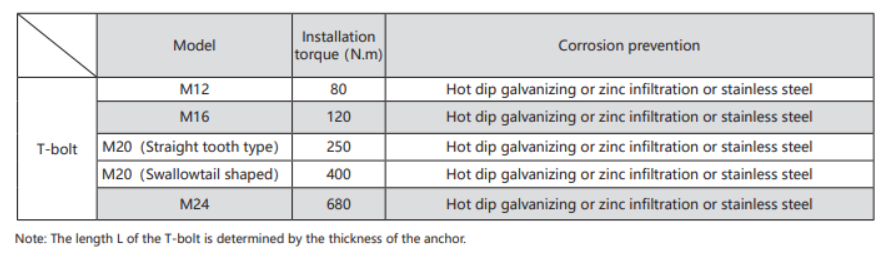

T-bolts：

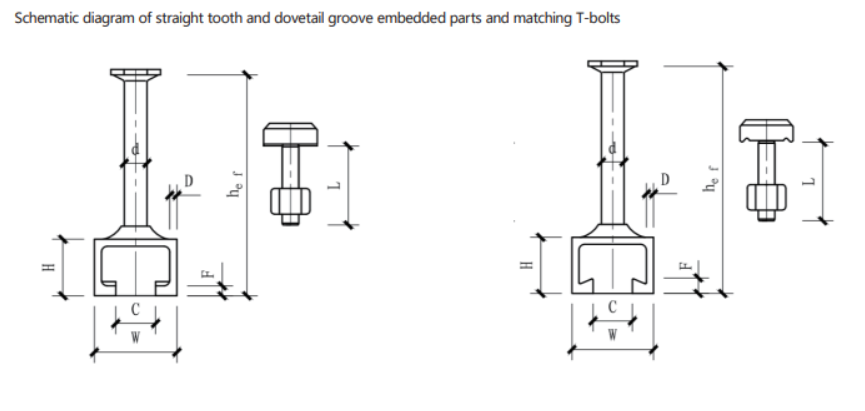

Product schematic diagram:


Location：
